Hasco’s Ejector Portfolio is Extended

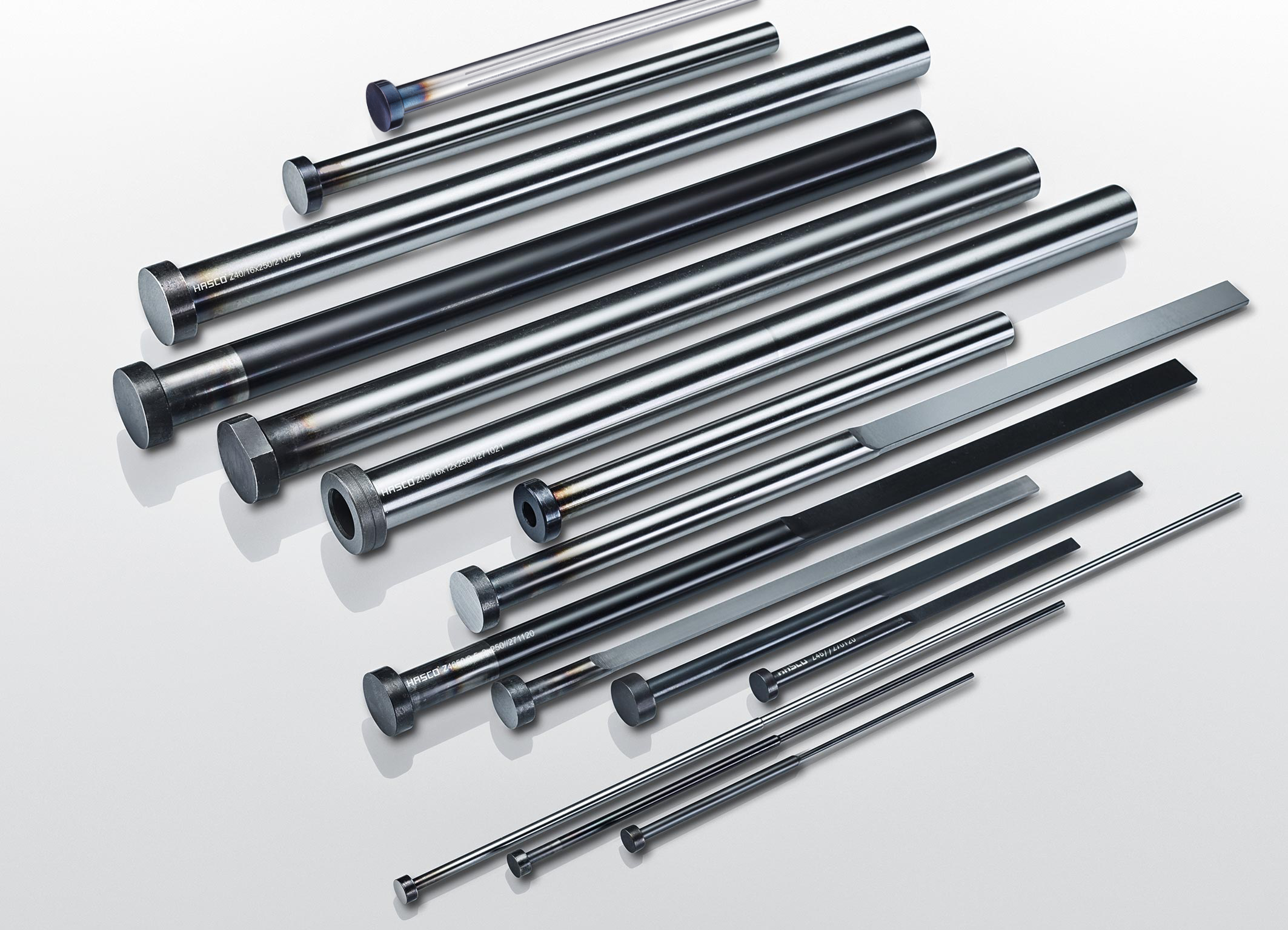

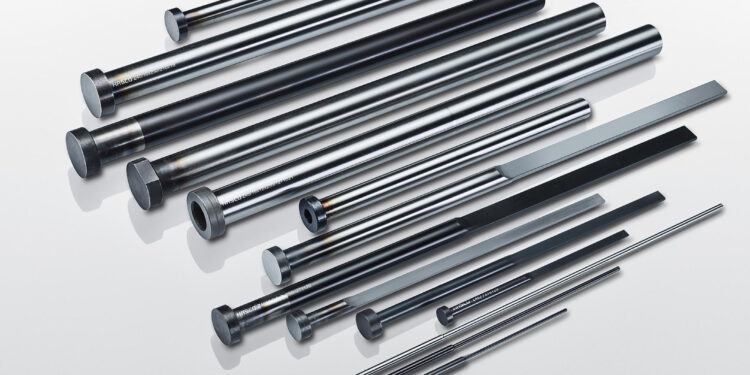

HASCO’s extensive ejector portfolio for the efficient demoulding of parts from injection moulding, compression moulding and diecasting tools has been further extended with a variety of ejector pins, ejector sleeves and flat ejector pins.
With over 600 new additional versions, HASCO offers its customers maximum flexibility that allows individual selection of the most suitable product for every application.
Ejectors for every application
The proven standard programme of hardened or nitrided ejectors with conical head or shouldered, with or without DLC coating, has repeatedly been supplemented in the last few years by a number of innovative products.
The ejector pins Z410/… with anti-twist head, for example, allow precision centring of individually contoured ejector or core pins in the mould. The flat ejector pins Z4656/… and Z4655/… with two or four corner radii are preferably used in critical areas of injection moulding tools such as ribs or crosspieces. With the hardened and nitrided ejector sleeves Z458/…, complex articles can be demoulded safely and effectively. Especially for particularly long ejector strokes, the ejector sleeves Z4501/… have a longer guide bore of 100 mm in all the available sizes.
The innovative ejector pins Z401/… with ventilation allow improved mould performance. Via the ventilation surfaces, the air in the cavity can easily escape. The new shouldered DLC-coated ejector pins Z4430/… of hardened HSS with optimum heat resistance are suitable, particularly at high mould temperatures and because of their dry running properties, for clean room applications.
With these extensive additions, HASCO is closing further gaps in its range and thus offers its customers unlimited possibilities in the field of demoulding.
Individual online configuration
With the user-friendly ejector configurator, HASCO makes it possible for its customers to easily configure online individually cut-to-length ejectors in four tolerances from 0/+2 to +/-0.01 mm that are well-proven in mouldmaking. With just a few clicks, the length can be defined, while the delivery time and price can also be directly viewed. The ejector configurator is a flexibly designed tool that simplifies and speeds up the ordering process. Short delivery times guarantee maximum efficiency and reliability for the entire production process.
www.hasco.com
